Container Specification

STANDARD CONTAINERS:
Standard 20'
  inside inside door door capacity tare maxi
  width  height  width  height weight  cargo







inside
length
19'4" 7'8" 7'10" 7'8" 7'6" 1,172CuFt 4,916lbs 47,900lbs
5.900m 2.350m 2.393m 2.342m 2.280m 33.2CBM 2,230Kg 21,770Kg
Standard 40'
inside inside inside door door capacity tare maxi
length  width  height  width  height weight  cargo
39'5" 7'8" 7'10" 7'8" 7'6" 2,390CuFt 8,160lbs 59,040lbs
12.036m 2.350m 2.392m 2.340m 2.280m 67.7CBM 3,700Kg 26,780Kg

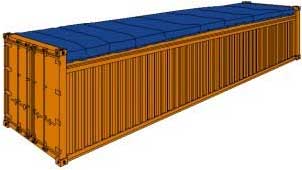

OPENTOP CONTAINERS:

Opentop 20'
  inside inside door door capacity tare maxi
  width  height  width  height weight  cargo







inside
length
19'4" 7'7" 7'8" 7'6" 7'2" 1,136CuFt 5,280lbs 47,620lbs
5.894m 2.311m 2.354m 2.286m 2.184m 32.23CBM 2,400Kg 21,600Kg
Opentop 40'
inside inside inside door door capacity tare maxi
length  width  height  width  height weight  cargo
39'5" 7'8" 7'8" 7'8" 7'5" 2,350CuFt 8,490lbs 58,710lbs
12.028m 2.350m 2.345m 2.341m 2.274m 65.5CBM 3,850Kg 26,630Kg

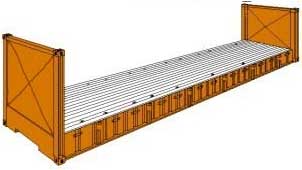

FLATRACK CONTAINERS:

Flatrack 20'
  inside inside door door capacity tare maxi
  width  height  width  height weight  cargo







inside
length
18'5" 7'3" 7'4" - - - 5,578lbs 47,333lbs
5.620m 2.200m 2.233m - - - 2,530Kg 21,470Kg
Flatrack 40'
inside inside inside door door capacity tare maxi
length  width  height  width  height weight  cargo
39'7" 6'10" 6'5" - - - 12,081lbs 85,800lbs
12.080m 2.438m 2.103m - - - 5,480Kg 39,000Kg

FLATRACK COLLAPSIBLE CONTAINERS:

Flatrack Collapsible 20'
  inside inside door door capacity tare maxi
  width  height  width  height weight  cargo







inside
length
18'6" 7'3" 7'4" - - - 6,061lbs 61,117lbs
5.618m 2.208m 2.233m - - - 2,750Kg 17,730Kg
Flatrack Collapsible 40'
inside inside inside door door capacity tare maxi
length  width  height  width  height weight  cargo
39'7" 6'10" 6'5" - - - 12,081lbs 85,800lbs
12.080m 2.126m 2.043m - - - 5,800Kg 39,000Kg

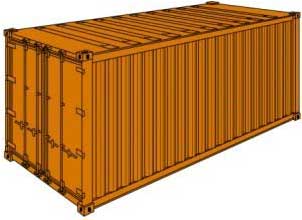

REEFER CONTAINERS:

Reefer 20'
  inside inside door door capacity tare maxi
  width  height  width  height weight  cargo










inside
length
17'8" 7'5" 7'5" 7'5" 7'3" 1,000CuFt 7,040lbs 45,760lbs
5.425m 2.275m 2.260m 2.258m 2.216m 28.3CBM 3,200Kg 20,800Kg
Reefer 40'
inside inside inside door door capacity tare maxi
length  width  height  width  height weight  cargo
37'8" 7'5" 7'2" 7'5" 7'0" 2,040CuFt 10,780lbs 56,276lbs
11.493m 2.270m 2.197m 2.282m 2.155m 57.8CBM 4,900Kg 25,580Kg
Reefer High Cube 40'
inside inside inside door door capacity tare maxi
length  width  height  width  height weight  cargo
37'11" 7'6" 8'2" 7'6" 8'0" 2,344CuFt 9,900lbs 57,761lbs
11.557m 2.294m 2.500m 2.294m 2.440m 66.6CBM 4,500Kg 25,980Kg

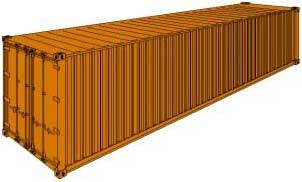

HIGH CUBE CONTAINERS:

HIGH CUBE 40'
  inside inside door door capacity tare maxi
  width  height  width  height weight  cargo








inside
length
39'5" 7'8" 8'10" 7'8" 8'5" 2,694CuFt 8,750lbs 58,450lbs
12.036m 2.350m 2.697m 2.338m 2.338m 76.3CBM 3,970Kg 26,510Kg

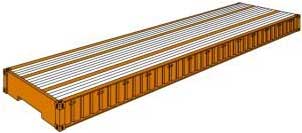

PLATFORM CONTAINERS:

PLATFORM 20'
  inside inside door door capacity tare maxi
  width  height  width  height weight  cargo





inside
length
19'11" 8'0" 7'4" - - - 6,061lbs 52,896lbs
6.058m 2.438m 2.233m - - - 2,750Kg 24,000Kg
PLATFORM 40'
inside inside inside door door capacity tare maxi
length  width  height  width  height weight  cargo
40'0" 8'0" 6'5" - - - 12,783lbs 86,397lbs
12.180m 2.400m 1.950m - - - 5,800Kg 39,200Kg
Air CONTAINERS:

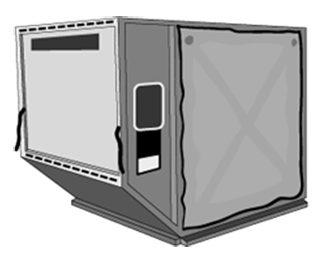

LD3/AKE/AVE container
ULD dimensions and weight measurements are subject to the conditions of the individual airline company.

Base dimensions
Cm:   (L) 156.2 x (W) 153.4
Inches:   (L) 65 x (W) 60.4

Top dimensions
Cm:   (L) 200.6 x (W) 149.4
Inches:   (L) 79.0 x (W) 58.8

Height dimensions
Cm:   162.6
Inches:   64
Tare weight:   82kg

Max. gross weight   1,587 kg

Air CONTAINERS:

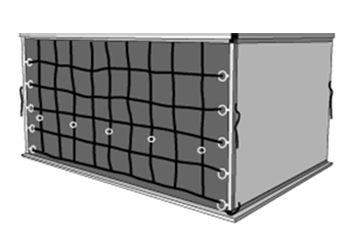

LD9/AAP container
ULD dimensions and weight measurements are subject to the conditions of the individual airline company.

Base dimensions
Cm:   (L) 317.5 x (W) 223.5
Inches:   (L) 125 x (W) 88

Height dimensions
Cm:   162.6
Inches:   64
Tare weight:   270kg

Max. gross weight
Lower deck:   1,587 kg
Main deck:   6,000 kg

IATA codes   AAZ, AAP, RAZ, RAP

Suitable for the following aircraft A300, A310, B747, B767, B777, A340
